description

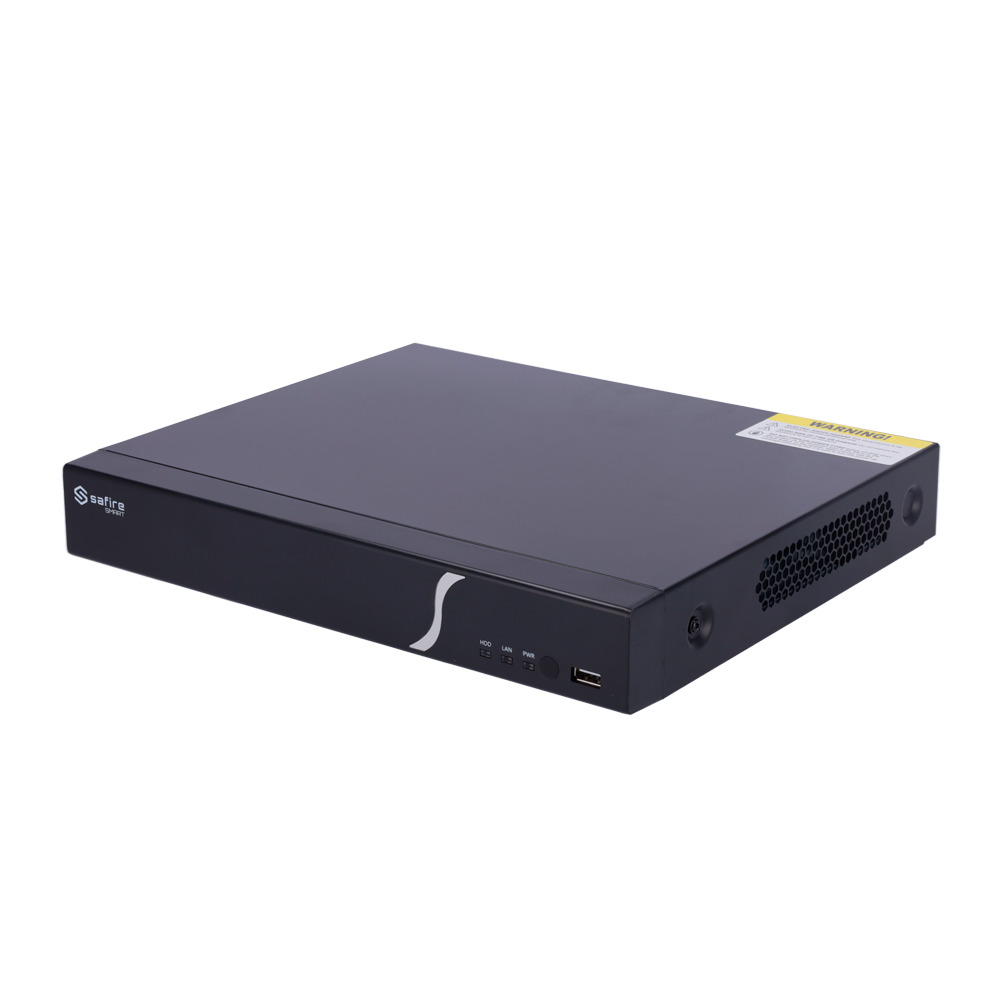

Safire Smart brand. Video format: HDTVI / HDCVI / AHD / CVBS / IP. Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS). Hybrid configuration: Default: 4 channels from BNC and 4 (substitution) + 2 (extra) IP channels (up to 8 Mpx). Video outputs: 1 x 4K HDMI, 1 x VGA. Audio inputs: 4 RCA channels. Audio outputs: 1 x RCA channel. Bidirectional audio: Utilizing the audio input/output. Video/audio compression: H.265 / H.264. Display resolution: HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS. BNC input resolution: TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps. Main Stream Encoding: 4K@6fps /7fps (PAL/NTSC) (only supported by channel 1; 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL / NTSC); 4MP/3MP@12fps / 15fps (PAL / NTSC); 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps(PAL / NTSC). Simultaneous Multi-functionality: Pentaplex: Live, Record, Playback, Backup and Remote Access. Bit Rate: 32Kbps ~ 4Mbps. Bandwidth: 16 Mbps (Incoming) / 40 Mbps (Outgoing). Alarms: 4 inputs / 1 relay. Smart Functions: Motion Detection; VCA Rules: Line Crossing and Area Intrusion. Recording Method: Manual, Scheduled, Intelligent Events. Backup: USB / Network. Internal Storage: 1 x 3.5" SATA HDD up to 10TB (not included). Communication: 2 x USB 2.0 (Mouse & Backup) / RJ45 (Ethernet) / 1 x e-SATA. Remote Access: Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software. Power Supply: DC 12 V / 2 A (Consumption without HDD < 10 W). Dimensions / Weight: 42 (H) x 300 (W) x 249 (D) mm / 1.2 Kg.
